INTRODUCTION

The internal ship limit determines the maximum email size that a group can transmit or receive. Accounts within the designated group will comply with the specified limit, which is contingent upon the vessel's available individual carrier(s).

Should an email surpass the size limit designated at this level, it will not be retrieved by the vessel and will be retained in the shore queue until a carrier with a capacity equal to or greater than the email size becomes accessible.

Note: The maximum send and receive server limit is capped at 30MB.

EXAMPLE 1 (SHIP TO SHORE)

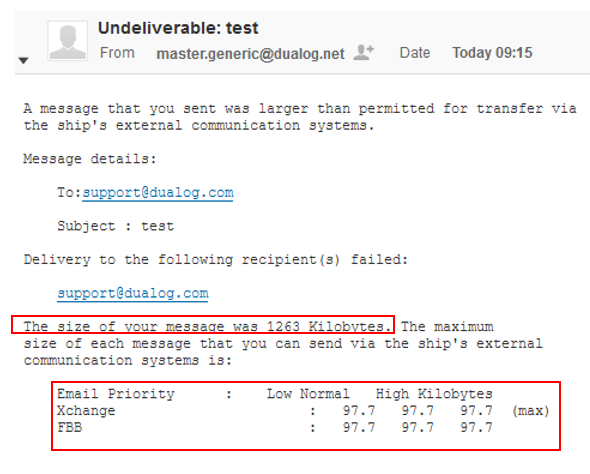

If an account within a group attempts to send an email with a size greater than the configured "From Ship" value within the Internal Ship Limit, the sender will receive the following system notification:

The system notification will include the size of the failed email, as well as the maximum email size limit of the individual career(s) onboard for the group to which the account belongs.

EXAMPLE 2 (SHORE TO SHIP)

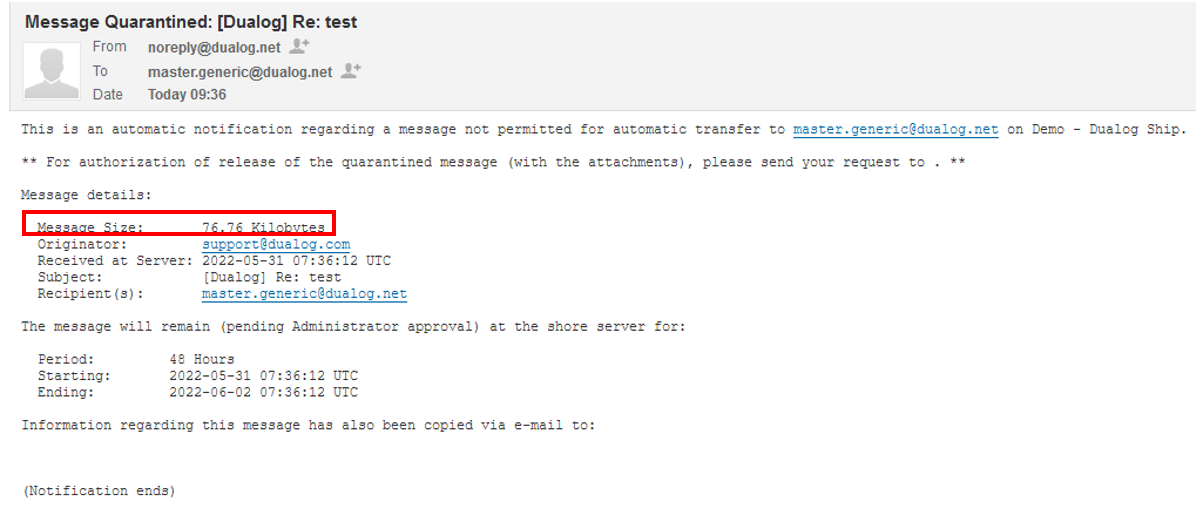

If an external sender sends an email that exceeds the "To Ship" value within the Internal Ship Limit while the quarantine feature is enabled, the email will be quarantined.

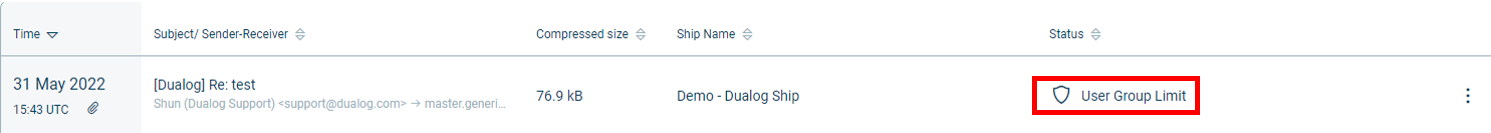

Without the quarantine feature enabled, the email will not be sent and will appear in the search messages as "User Group Limit."

HOW TO EDIT OR UPDATE THE INTERNAL SHIP LIMITS

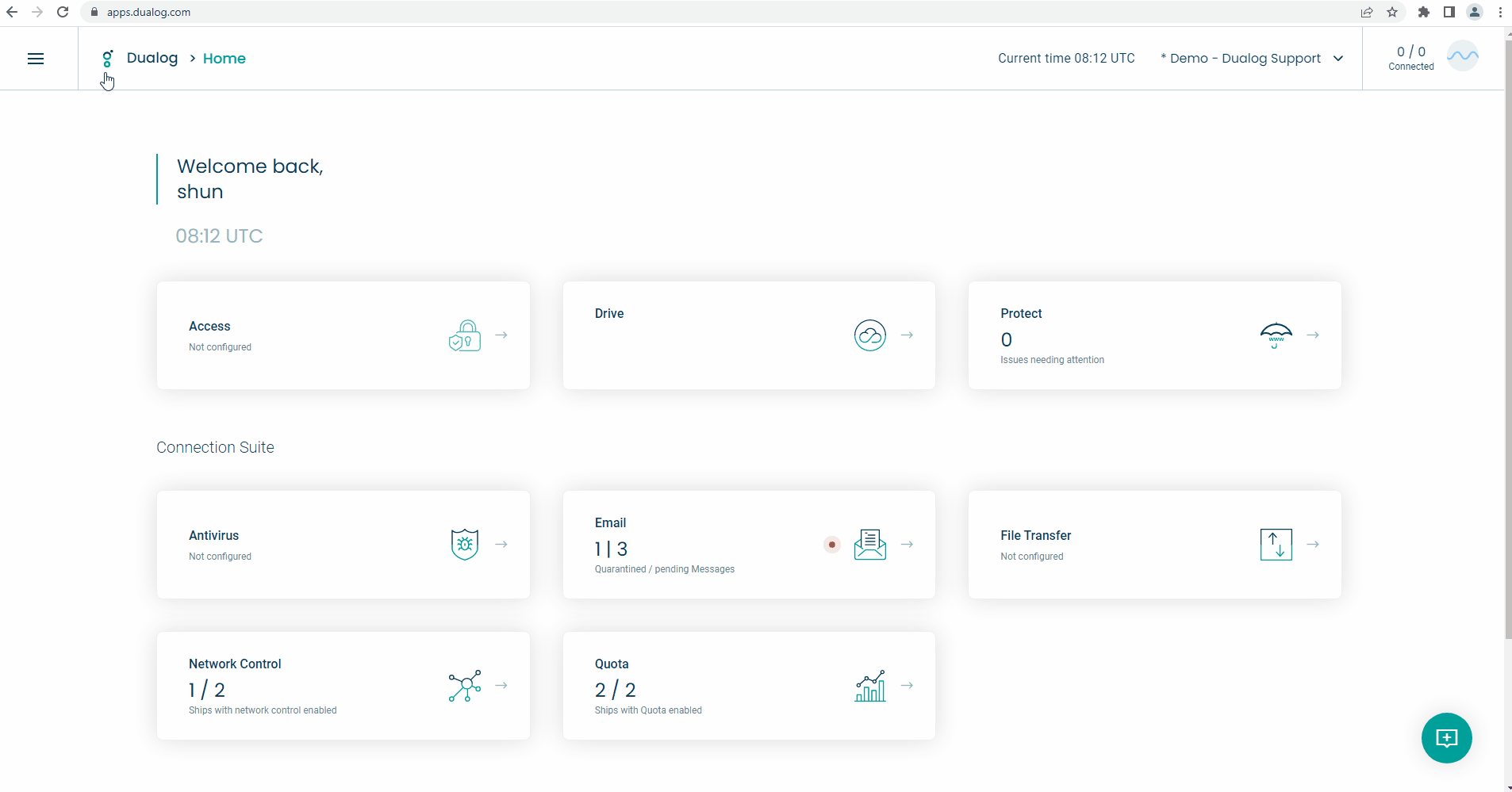

1. Login to the Dualog portal with either Owner or Member access type account.
2. Expand the Main menu > Connection Suite > Email
   The main menu is located in the top left corner.
3. Click on Settings
4. Locate the Size restrictions group on the Email settings page

5. Click on Edit Settings
6. Scroll down to the Internal Ship Limits section
7. You may filter the list of vessels, by typing a partial name for the vessel of interest in the Search for Ship input field.
8. Click on the relevant vessel to open the configuration window.
   Note that limits can only be applied to individual vessels and not fleet-wide.
9. The configuration window allows settings per carrier.  Click on a carrier to unfold individual group settings.
10. Amend the from/to limits for the respective groups
11. Click on Save changes to store any changes to the configuration.
